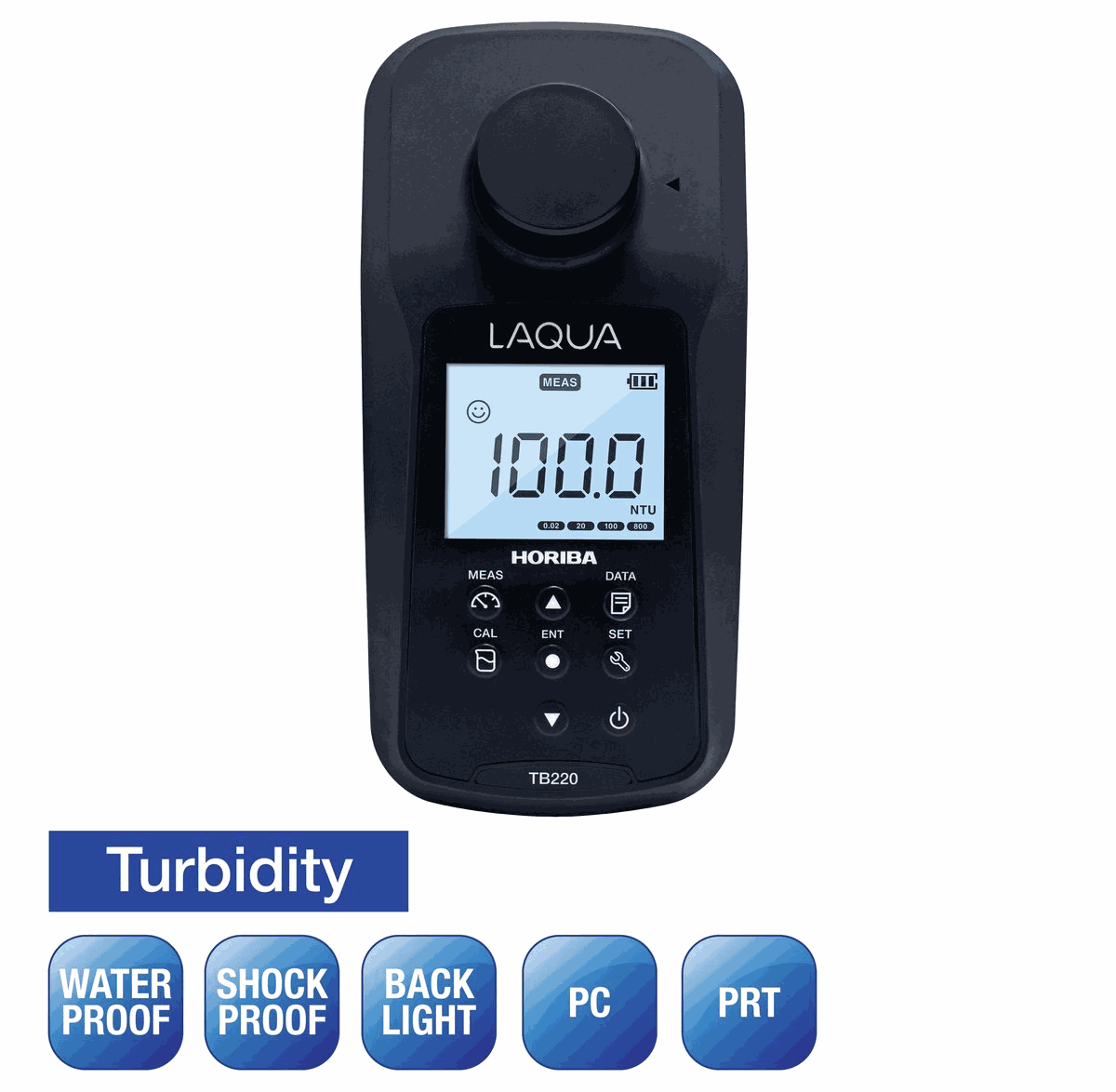

"Clear Measurements for Clear Insights." The HORIBA TB220 is a dedicated benchtop turbidity analyzer for precise measurement of water clarity. Ideal for drinking water treatment, wastewater monitoring, industrial process control, and environmental compliance testing, the TB220 delivers laboratory-grade accuracy with user-friendly operation and comprehensive data management capabilities.
The HORIBA TB220 is a specialized benchtop instrument dedicated to precise turbidity measurement. Turbidity — the cloudiness or haziness of water caused by suspended particles — is a critical water quality parameter. The TB220 employs advanced optical sensing technology to deliver accurate, repeatable turbidity measurements across a wide range, from crystal-clear water to highly turbid samples. Essential for water utilities, treatment plants, and industries where water clarity is paramount.
Monitor water clarity in treatment plants to ensure safe, clear drinking water. Essential for regulatory compliance (EPA, WHO standards).
Track clarification in treatment processes; ensure regulatory discharge limits are met.
Monitor cooling water, process water, and filtration systems in manufacturing and food/beverage operations.
Quality control testing for beer clarity, juice processing, and other beverages where appearance impacts product value.
Field and laboratory testing of surface water, groundwater, and wastewater for environmental impact assessment.
Laboratory studies on turbidity, particle sizing, and water clarity optimization.
| Measurement Range | 0 to 4000+ NTU (depending on model) |
|---|---|
| Measurement Units | NTU, FNU, FAU, EBC, and others (selectable) |
| Measurement Standards | ISO 7027, EPA Method 180.1, DIN 38404-6 |
| Display | Large LCD screen with backlight and menu navigation |
| Calibration | 1-3 point calibration with standard suspension solutions (0, 0.02, 1.0, 10, 100 NTU available) |
| Data Storage | Internal memory for measurement history and quality control records |
| Sample Cell Options | Standard 10mm and non-stirring cells; can also accommodate other cell sizes |
| Auto-Cleaning | Optional internal cell-cleaning function to prevent sample carryover |
| Power Supply | AC 100-240V, 50/60Hz (typical power consumption <50W) |
| Operating Temperature | 5 to 40 °C (storage: -10 to 50 °C) |
| Dimensions | Approximately 250W x 280D x 180H mm |
| Weight | Approximately 4-5 kg |
| Warranty | 2 years on meter; optical components typically 1-2 years |
Primary calibration standards in 0.02, 1.0, 10, 100, 800, and 4000 NTU concentrations for accurate instrument calibration.
Polymer calibration standards with long shelf-life and stability advantages over formazin solutions.
Ultra-pure water or distilled water for zero-point calibration and instrument verification.
Specialized cleaning agents to maintain optical cell clarity and extend instrument life.
Replacement optical cells (10mm standard and other configurations) to accommodate various sample types and batches.
Complete set of calibration suspensions for initial setup and periodic verification of instrument accuracy.
USB or RS-232 cable for data transfer to LIMS and laboratory software systems.
Optional coupling to automated sample changers for high-throughput turbidity analysis.
